Panasonic | rightwealth

14-50mm F2.8-3.5 ASPH. MEGA O.I.S

TECH SPECS & FEATURES - Mount 4/3 - Lens Structure 16 elements in 12 groups (2 aspherical lenses) - Image Stabalisation MEGA O.I.S. - Focal Length f=14 mm to 50 mm (35mm film camera equiv. 28 mm to 100mm) - Aperture F2.8 (Wide) - F3.5 (Tele) - Minimum Aperture F22 - Aperture Type 7 diaphragm blades / iris diaphragm - Diagonal Angle of View 75° (Wide) - 24° (Tele) - Closest Focusing Distance 0.29m at all focal lengths - Maximum magnification Approx. 0.16x

42.5mm F1.2 ASPH. POWER O.I.S

TECH SPECS & FEATURES - Mount Micro Four Thirds - Lens Structure 14 elements in 11 groups (2 aspherical lenses, 1 ED lens, 1 UHR lens) Image Stabalisation Yes (POWER O.I.S.) - Focal Length f=42.5mm (35mm camera equivalent 85mm) - Aperture F1.2 - Minimum Aperture F16 - Aperture Type 9 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 29° - Closest Focusing Distance 0.5m - Maximum magnification Approx. 0.1x / 0.2x

25mm F1.4 ASPH

TECH SPECS & FEATURES - Mount Micro 4/3 - Lens Structure 9 elements in 7 groups (2 aspherical lenses , 1 UHR(Ultra High Refractive Index)Lens ) - Focal Length f=25mm (35mm camera equivalent 50mm) - Aperture F1.4 - Minimum Aperture F16 - Aperture Typen 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 47° - Closest Focusing Distance 0.3 m - Maximum magnification Approx. 0.11x / 0.22x

14-150mm F3.5-5.6 ASPH. MEGA O.I.S

TECH SPECS & FEATURES - Mount 4/3 - Lens Structure 15 elements in 11 groups (4 aspherical lenses and 1 ED lens) Image Stabalisation MEGA O.I.S. - Focal Length f=14 mm to 150 mm (35mm film camera equiv. 28 mm to 300mm) - Aperture F3.5 (Wide) - F5.6 (Tele) - Minimum Aperture F22 - Aperture Type 7 diaphragm blades / Iris diaphragm - Diagonal Angle of View 75° (Wide) – 8.2° (Tele) - Closest Focusing Distance 0.50m at all focal lengths - Maximum magnification Approx. 0.18x

25mm F1.4 ASPH

TECH SPECS & FEATURES - Mount 4/3 - Lens Structure 10 elements in 9 groups (1 aspherical lens, 1 Super ED lens and 3 ED lenses) - Focal Length f=25mm (35mm camera equivalent 50mm) - Aperture F1.4 - Minimum Aperture F16 - Aperture Type 7 diaphragm blades / Iris diaphragm - Diagonal Angle of View 47° - Closest Focusing Distance 0.38m - Maximum magnification Approx. 0.085x

DG SUMMILUX 15mm F1.7 ASPH

TECH SPECS & FEATURES - Mount Micro Four Thirds - Lens Structure 9 elements in 7 groups (3 aspherical lenses) - Focal Length f=15mm (35mm camera equivalent 30mm) - Aperture F1.7 - Minimum Aperture F16 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 72° - Closest Focusing Distance 0.2m - Maximum magnification Approx. 0.1x / 0.2x

45mm F2.8 ASPH. MEGA O.I.S

TECH SPECS & FEATURES - Advanced Scene modes 14 elements in 10 groups (1 Aspherical lens, 1 ED lens) - Image Stabalisation MEGA O.I.S. - Focal Length f=45mm (35mm camera equivalent 90mm) - Aperture F2.8 - Minimum Aperture F22 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 27° - Closest Focusing Distance FULL:0.15m/0.50ft, LIMIT: 0.5m/1.64ft - Maximum magnification Approx. 1.0x / 2.0x

100-300mm F4.0-5.6 MEGA O.I.S

TECH SPECS & FEATURES - Mount Micro 4/3 Lens Structure 17 elements in 12 groups (1 ED lens) - Image Stabalisation MEGA O.I. S. - Focal Length f=100mm to 300mm (35mm camera equivalent 200mm to 600mm) - Aperture F4.0(Wide) - F5.6(Tele) - Minimum Aperture F22 - Aperture Type 7 diaphragm blades / - Circular aperture diaphragm - Diagonal Angle of View 12°（Wide）~ 4.1°（Tele） - Closest Focusing Distance 1.50m at all focal lengths - Maximum magnification Approx. 0.21x / 0.42x

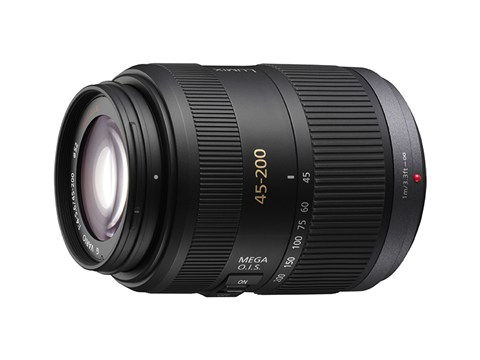

45-200mm F4.0-5.6 MEGA O.I.S

TECH SPECS & FEATURES - Mount Micro 4/3 - Lens Structure 16 elements in 13groups - Image Stabalisation MEGA O.I.S. - Full HD Movie Recording Yes - Focal Length f=45mm to 200mm (35mm film camera equivalent 90mm to 400mm) - Aperture F4.0 (Wide) - F5.6 (Tele) - Minimum Aperture F22 - Diagonal Angle of View 27° ( Wide ) - 6.2° (Tele) - Closest Focusing Distance 1.0 m at all focal lengths - Maximum magnification Apporox. 0.19x / 0.38x

45-175mm F4.0-5.6 ASPH. POWER O.I.S

TECH SPECS & FEATURES - Mount Micro 4/3 - Lens Structure 14 elements in 10 groups (2 aspherical lenses, 2 ED lenses) - Image Stabalisation POWER O.I.S. - Focal Length f=45mm to 175mm (35mm camera equivalent 90mm to 350mm) - Aperture F4.0 (Wide) - F5.6 (Tele) - Minimum Aperture F22 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 27°(W) - 7.1°(T) - Closest Focusing Distance 0.9 m - Maximum magnification Approx. 0.2x / 0.4x

45-150mm F4.0-5.6 ASPH. MEGA O.I.S

TECH SPECS & FEATURES - Mount Micro 4/3 - Lens Structure 12 elements in 9 groups - Image Stabalisation MEGA O.I.S. - Focal Length 45mm to 150mm (35mm camera equivalent 90mm to 300mm) - Aperture F4.0(Wide) - F5.6(Tele) - Minimum Aperture F22 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 27°(Wide) - 8.2°(Tele) - Closest Focusing Distance 0.9m at all focal lengths - Maximum magnification Approx. 0.17x / 0.35x

35-100mm F2.8 POWER O.I.S

TECH SPECS & FEATURES - Mount Micro 4/3 - Lens Structure 18 elements in 13 groups (2 ED lenses, 1 UED lens) - Image Stabalisation POWER O.I.S. - Focal Length 35mm to 100mm (35mm camera equivalent 70mm to 200mm) - Aperture F2.8 - Minimum Aperture F22 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 34°(Wide) - 12°(Tele) - Closest Focusing Distance 0.85m - Maximum magnification Approx. 0.1x / 0.2x

14-140mm F3.5-5.6 ASPH. POWER O.I.S

TECH SPECS & FEATURES - Mount Micro Four Thirds mount - Lens Structure 14 elements in 12 groups - Image Stabalisation POWER O.I.S. - Focal Length 14mm to 140mm - Aperture F3.5(Wide) - F5.6(Tele) -Minimum Aperture F22 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 75°(Wide) - 8.8°(Tele) - Closest Focusing Distance 0.30m (at focal length 14-21mm), 0.50m (at focal length 22-140mm) - Maximum magnification Approx. 0.25x

14-140mm F4.0-5.8 ASPH. MEGA O.I.S

TECH SPECS & FEATURES - Lens Structure 17 elements in 13 groups (4 Aspherical lenses, 2 ED lenses) Image Stabalisation MEGA O.I.S. - Focal Length f=14mm to 140mm (35mm camera equivalent 28mm to 280mm) - Aperture F4.0 (Wide) - F5.8 (Tele) - Minimum Aperture F22 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 75° (Wide) ~ 8.8° (Tele) - Closest Focusing Distance 0.50m at all focal lengths - Maximum magnification Approx. 0.2x / 0.4x

14-45mm F3.5-5.6 ASPH. MEGA O.I.S

TECH SPECS & FEATURES - Lens Structure 12 elements in 9 groups (1 Aspherical lens) - Image Stabalisation MEGA O.I.S. - Focal Length f=14mm to 45mm (35mm film camera equivalent 28mm to 90mm) - Aperture F3.5 (Wide) - F5.6 (Tele) - Minimum Aperture F22 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 75° (Wide) - 27° (Tele) - Closest Focusing Distance 0.30m at all focal lengths - Maximum magnification Approx. 0.17x / 0.34x

14-42mm F3.5-5.6 ASPH POWER O.I.S

TECH SPECS & FEATURES - Mount Micro 4/3 - Lens Structure 9 elements in 8 groups - Image Stabalisation POWER O.I.S. - Focal Length f=14mm to 42mm (35mm camera equivalent 28mm to 84mm) - Aperture F3.5(Wide) - F5.6(Tele) - Minimum Aperture F22 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 75°(W) - 29°(T) - Closest Focusing Distance 0.2m (14-20mm), 0.3m (21-42mm) - Maximum magnification Approx. 0.17x / 0.34x

14-42mm F3.5-5.6 II ASPH MEGA O.I.S

TECH SPECS & FEATURES - Mount Micro 4/3 - Lens Structure 9 elements in 8 groups Image Stabalisation MEGA O.I.S. - Focal Length f=14mm to 42mm (35mm camera equivalent 28mm to 84mm) - Aperture F3.5 (Wide) - F5.6 (Tele) - Minimum Aperture F22 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 75° (Wide) - 29° (Tele) - Closest Focusing Distance 0.2m (at focal length 14-20mm), 0.3m - Maximum magnification Approx. 0.17x / 0.34x

14-42mm F3.5-5.6 ASPH MEGA O.I.S

TECH SPECS & FEATURES - Mount Micro 4/3 - Lens Structure 12 elements in 9 groups (1 Aspherical lens) - Image Stabalisation MEGA O.I.S. - Focal Length f=14mm to 42mm (35mm camera equivalent 28mm to 84mm) - Aperture F3.5 (Wide) - F5.6 (Tele) - Minimum Aperture F22 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 75° (Wide) - 29° (Tele) - Closest Focusing Distance 0.30m / 1ft at all focal lengths - Maximum magnification Approx. 0.16x / 0.32x

12-35mm F2.8 ASPH. POWER O.I.S

TECH SPECS & FEATURES - Mount Micro 4/3 - Lens 14 elements in 9 groups (4 aspherical lenses , 1 UED lens, 1 UHR lens) - Image Stabalisation POWER O.I.S. - Focal Length f=12-35mm (35mm camera equivalent 24-70mm) - Aperture F2.8 - Minimum Aperture F22 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 84°(Wide) - 34°(TELE) - Closest Focusing Distance 0.25m - Maximum magnification Approx. 0.17x / 0.34x

12-32mm F3.5-5.6 ASPH. MEGA O.I.S

TECH SPECS & FEATURES - Mount Micro 4/3 - Lens 8 elements in 7 groups (3 aspherical lenses, 1ED lens) - Image Stabalisation MEGA O.I.S. - Focal Length f=12mm to 32mm (35mm camera equivalent 24mm to 64mm) - Aperture F3.5 - Minimum Aperture F22 - Aperture Type 7 diaphragm blades /Circular aperture diaphragm - Diagonal Angle of View 84°(W) - 37°(T) - Closest Focusing Distance 0.2m (at focal length 12-20mm), 0.3m (at focal length 21-32mm) - Maximum magnification Approx. 0.13x / 0.26x

7-14mm F4 ASPH

TECH SPECS & FEATURES - Mount Micro 4/3 - Lens Structure 16 elements in 12groups - Full HD Movie Recording Yes - Focal Length f=7mm to 14mm (35mm camera equivalent 14mm to 28mm) - Aperture F4 - Minimum Aperture F22 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 114° ( W ) ~ 75° ( T ) - Closest Focusing Distance 0.25m - Maximum magnification Apporox. 0.08x / 0.15x

20mm F1.7 II ASPH

TECH SPECS & FEATURES - Mount Micro 4/3 - Lens Structure 7 elements in 5 groups (2 Aspherical lenses) - Focal Length f=20mm (35mm camera equivalent 40mm) - Aperture F1.7 - Minimum Aperture F16 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 57° - Closest Focusing Distance 0.2m - Maximum magnification Approx. 0.13x / 0.25x

20mm F1.7 ASPH

TECH SPECS & FEATURES - Lens Structure 7 elements in 5 groups (2 Aspherical lenses) - Focal Length f=20mm (35mm camera equivalent 40mm) - Aperture F1.7 - Minimum Aperture F16 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 57° - Closest Focusing Distance 0.2m - Maximum magnification Approx. 0.13x / 0.25x

14mm F2.5 ASPH

TECH SPECS & FEATURES - Mount Micro 4/3 - Lens Structure 6 elements in 5 groups (3 aspherical lenses) - Focal Length f=14mm (35mm camera equivalent 28mm) - Aperture F2.5 - Minimum Aperture F22 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 75° - Closest Focusing Distance 0.18m - Maximum magnification Approx. 0.10x / 0.20x

12.5mm F12

TECH SPECS & FEATURES - Mount Micro 4/3 - Lens 4 elements in 3 groups x2 - Focal Length f=12.5mm (35mm camera equivalent 65mm*) - Aperture F12 (Fixed) - Diagonal Angle of View 37°* - Closest Focusing Distance 0.60m / 1.97ft - Maximum magnification Approx. 0.02x / 0.1x

FISHEYE 8mm F3.5

TECH SPECS & FEATURES - Mount Micro 4/3 - Lens Structure 10 elements in 9 groups (1 ED lens) - Focal Length f=8mm (35mm camera equivalent 16mm) - Aperture F3.5 - Minimum Aperture F22 - Aperture Type 7 diaphragm blades / Circular aperture diaphragm - Diagonal Angle of View 180° - Closest Focusing Distance 0.1m - Maximum magnification Approx. 0.20x / 0.40x
